Fly Hawk Series All In One
Smart Solar Street Lights

Integrated/All-in-One Solar Street Lights

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

  • 'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.
  • Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
  • All die-casting aluminum light body zinc plated anti-rust corrosion.
  • Perfect modular structure design, no wiring, easily replace the battery and other parts.
  • 100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.

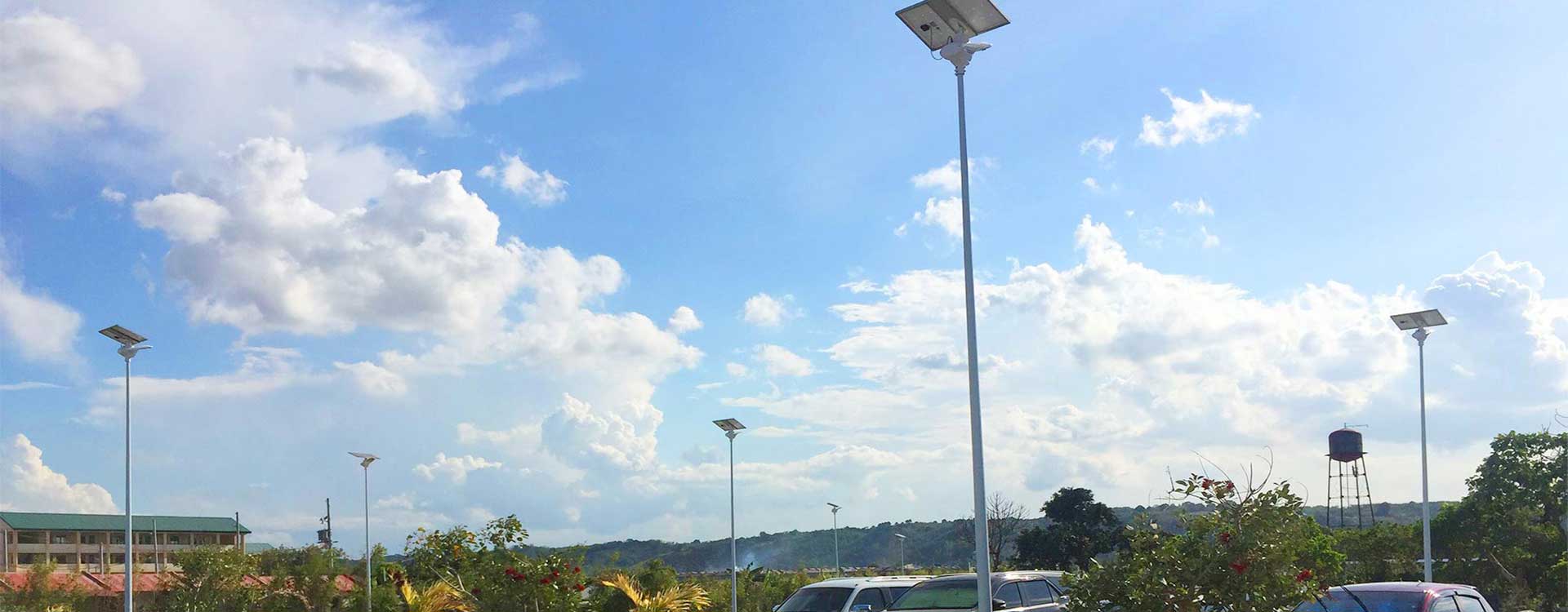

Light up your entire public community with commercial solar street lights!

Product Feactures

Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps

1-adjustable-solar-panel-and-led-fixture

Adjustable solar panel and led fixture

2-pulg-and-play-connection-easy-for-wiring

Pulg and play connection easy for wiring

3.-Quick-maintenance-channel-design,-easy-for-maintance

Quick maintenance channel design, easy for maintance

4-High-lumen-led-light

High lumen led light

Technical Resources Download

heisolar_pdf_icon

Brochure

FH Series Brochure

heisolar_pdf_icon

Specification

FH Series Datasheet

heisolar_pdf_icon

User Manual

User guide & installation

Specification

Model Parameters
Led light
(Watts)
Lumen Output (lm) Mono Solar panel LiFePO4 Battery Mounting height Mounting Distance
BS-FH-40 40W
(Bridgelux led chip)
6400-7200LM 80W/18V 27AH/12.8V 7-8m 19-23m
BS-FH-50 50W
(Bridgelux led chip)
8000-9000LM 100W/18V 33AH/12.8V 8-9m 23-27m
BS-FH-60 60W
(Bridgelux led chip)
9600-10800lm 120W/36V 21AH/25.6V 9-10m 27-31m
BS-FH-80 80W
(Bridgelux led chip)
12800-14400lm 160W/36V 24AH/25.6V 10-11m 30-35m
BS-FH-100 100W
(Bridgelux led chip)
16000-18000lm 200W/36V 27AH/25.6V 10-12m 35-40m

Packaging Details

Packaging Details
GW Carton Size Container
24kg/set lamp: 760*420*340mm
solar panel: 780*755*90mm
0.15m³/set
173sets/20GP,
360sets/40GP,
453sets/40HQ,
25.7kg/set lamp: 760*420*340mm
solar panel: 1050*730*90mm
0.17m³/set
153sets/20GP,
318sets/40GP,
400set/40HQ,
28.5kg/set lamp: 760*420*340mm
solar panel: 1200*740*100mm
0.19m³/set
139sets/20GP,
284sets/40GP,
358sets/40HQ,
32kg/set lamp: 760*420*340mm
solar panel: 1530*850*100mm
0.23m³/set
113sets/20GP,
235sets/40GP,
296sets/40HQ,
34kg/set lamp: 760*420*340mm
solar panel: 1640*870*100mm
0.24m³/set
108sets/20GP,
225sets/40GP,
283sets/40HQ

Description

1. Material High quality Die-cast Aluminum
2. CCT 6000K (3500-6000K can be customzied)
3. Light Distribution Type II (150 x 70)
4. Charging time 6-8hours
5. Work time 12 hours per night,  3-5 rainy days
6. Control mode Light/ time/  microwave sensor control /Time + microwave sensor control
7. Motion sensor Yes, microwave Detect distance: 15m-20m
8. Certifications CE, RoHS, FCC ,IP65,SGS, TUV, Wind-force,
9. Warranty 3yrs

Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

solar-fly-hawk-lgiht-01-300x300px1

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.

solar-fly-hawk-light-02-300x300px

2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.

solar-fly-hawk-light-03-300x300px

3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.

solar-fly-hawk-light-04-300X300PX

4. Install light

Fix the light fixture to the pole with 8pcs M10x25 screws.
